CNC Turning, Milling, & Light Assembly of an Acetal Piston & Seat Assembly

CNC Turning, Milling, & Light Assembly of an Acetal Piston & Seat Assembly
CNC Turning, Milling, & Light Assembly of an Acetal Piston & Seat Assembly

( Click image to enlarge )

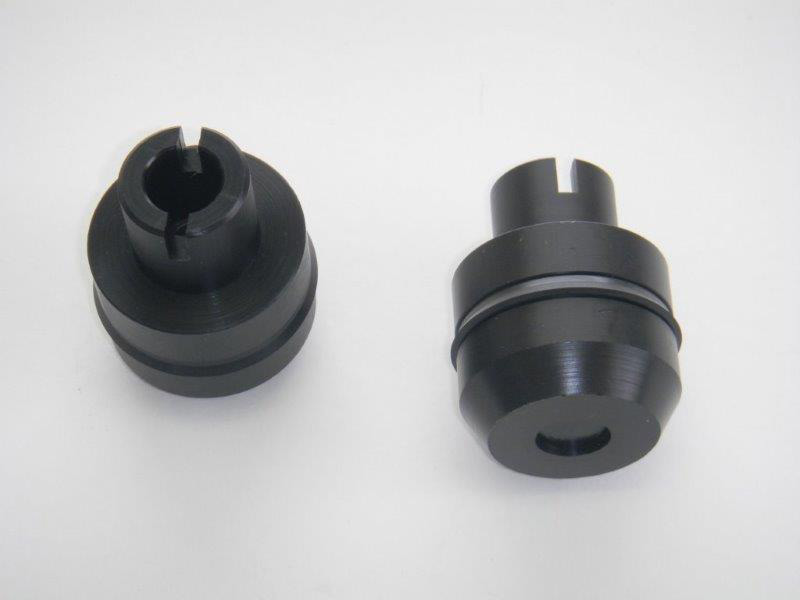

At Ohio Metal Products, we offer precision manufacturing as well as light assembly. With a reputation for quality that stretches back to 1909. Our ability to provide more than just machining was highlighted in this piston and seat assembly. The parts were machined from 1.5" diameter black acetal on our precision CNC turning and milling centers. After dimensional inspections, the parts were assembled with a purchased "cup" style seal located in a formed groove. The completed assembly featured dimensions of 1.494" in diameter and 1.988" in length, all machined to tolerances of ± .002". These pistons are now produced in numbers of 3200 pieces per year.

For more information about this project, please see the following table or feel free to contact us directly.

Request for Quote

Specifications of this CNC Turned and Milled Piston & Seat Assembly Project

Product Name
Piston
Product Description
Piston and Seal Assembly
Capabilities Applied
CNC Turning
CNC Milling
Assembly
Part Diameter
1.494 in.
Length
1.988 in.
Tightest Tolerance
± .002 in.
Feature
Light Assembly
Material Used
1.500” Acetal, Black
Quantity
3,200 pieces per year
Machining Operations
CNC Turning Center
CNC Vertical Machining Center
Standards Met
Customer Supplied Design
